: Wizard 211 Wizard 211 by Anilam The perfect choice for any machine tool application when basic DRO functions are required. With features like reset, preset, absolute/incremental mode, inch/metric conversion, radius/diameter mode, machine error compensation and many others, it will meet your basic needs and more. EverTrack- Additional precision grating on the RBS and RBM linear encoders ensure permanent position tracking. The position will never be lost due to power interruptions. Radius/Diameter Mode- The console can display the position either as a radius or diameter, an invaluable feature for lathes. Machine Error Compensation- Machine mechanics are never exact.

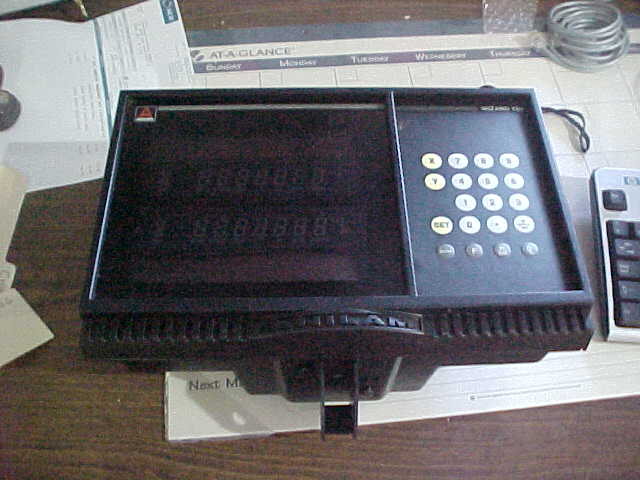

Anilam Mini Wizard
A correction factor can be set for each axis independently. Just move the axis a known distance, input what it should have been and the wizard will automatically make the necessary correction. Correction is linear in Wizard 211 and can vary over four segments in other models.
Anilam Mini Wizard Service Manual
Absolute/Incremental Mode- This feature allows positioning using either an absolute datum or the last position as reference for subsequent moves. Selectable with a single key stroke. Number of axes- 1, 2, or, 3 Housing- Die-cast Diagnostics Configurable axis designation Display resolution-.0005/.0001/.0002/.0005/.001 inch Support inch-grating encoders Inch/Metric conversion Reset Preset Absolute/Incremental mode Radius/Diameter mode Machine error compensation- linear Mid-point calculation Approaching zero warning-.5inch/10mm Add/Subtract calculator.
